Supabase Realtime: Live Mouse Cursor & Active User Tracking

Overview

The Live Mouse Cursor System enables real-time visualization of multiple users' cursors while collaborating on the same canvas or file. Each user's cursor position, color, name, and avatar are broadcasted using Supabase Realtime Channels.

A connected user can: - See other users' mouse cursors move live - View a list of active collaborators in the Active User Bar - Automatically remove inactive users (after timeout)

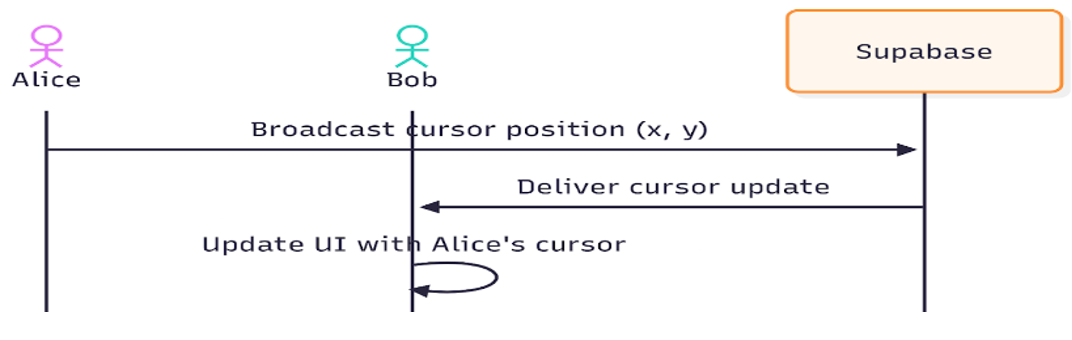

cursor movement demonstration

Supabase Realtime Broadcasting

Concept

Supabase Realtime provides a pub/sub mechanism using channels. Each connected client subscribes to a shared channel — e.g., "canvas-cursors-{fileId}-{versionId}".

When a user moves their cursor: - The new cursor data (payload) is broadcasted once - The broadcast is not stored — it's ephemeral and sent only to connected clients - All subscribed users immediately receive the update

Broadcast Event Example

supabase.channel('cursor-room').send({
  type: 'broadcast',
  event: 'cursor-update',
  payload: {
    userId: currentUserId.current,
    x,
    y,
    color: userColor.current,
    name: displayName,
    avatarUrl,
    lastUpdated: Date.now(),
  }
});

Explanation: - userId: Unique identifier for the sender - x, y: Cursor coordinates relative to the canvas - color: A random color assigned to each user - name: Display name - avatarUrl: Profile image - lastUpdated: Timestamp for tracking active users

Core Components

1. useLiveMouseCursor Hook

File: useLiveMouseCursor.ts

This hook manages: - Broadcasting of current user's cursor movements - Receiving and updating other users' cursor positions - Tracking active users and handling timeouts

Key Responsibilities:

Functionality	Description
Broadcast Cursor	Sends user's current mouse coordinates via Supabase Realtime
Receive Cursors	Listens to "cursor" events from other users in the same channel
Timeout Cleanup	Removes "ghost" cursors after 50 seconds of inactivity
Active Users List	Returns all active users (self + others)

Data Model:

interface RemoteCursor {
  userId: string;
  x: number;
  y: number;
  color: string;
  name: string;
  avatarUrl?: string;
  lastUpdated: number;
}

Hook Usage Flow:

const { remoteCursors, handleMouseMoveCanvas, activeUsers, currentUserId } =
  useLiveMouseCursor(fileId, versionId, reactFlowWrapper, userName, avatarUrl, userId);

Steps: 1. Subscribe to channel canvas-cursors-{fileId}-{versionId} 2. Listen for "cursor" events 3. Update state for each user's cursor 4. Cleanup inactive cursors every 50s 5. Expose functions and data to the UI components

Broadcasting Example:

const handleMouseMoveCanvas = (e: React.MouseEvent) => {
  const bounds = reactFlowWrapper.current?.getBoundingClientRect();
  if (!bounds) return;

  const x = e.clientX - bounds.left;
  const y = e.clientY - bounds.top;

  supabase.channel(`canvas-cursors-${fileId}-${versionId}`).send({
    type: "broadcast",
    event: "cursor",
    payload: {
      userId: currentUserId.current,
      x,
      y,
      color: userColor.current,
      name: displayName,
      avatarUrl,
      lastUpdated: Date.now(),
    },
  });
};

Cursor Timeout Mechanism:

if (now - cursor.lastUpdated > 50000) {
  delete updated[userId];
}

2. ActiveUserBar Component

File: ActiveUserBar.tsx

This React component displays avatars of all currently connected users except the current one.

Responsibilities: - Uses useLiveMouseCursor hook to get activeUsers - Renders a scrollable horizontal bar of user avatars - Shows user name on hover - Adds color border to represent each user's cursor color

Example UI Logic:

href="#__codelineno-5-1">{activeUsers .filter((user) => user.userId !== currentUserId) .map((user) => ( <div key={user.userId} className="group relative shrink-0 w-14"> <div className="w-10 h-10 rounded-full shadow-sm flex items-center justify-center overflow-hidden bg-white" style={{ border: `3px solid ${user.color}` }} > <Image src={user.avatarUrl || "/default-avatar.png"} alt={user.name} width={40} height={40} className="rounded-full object-cover" /> </div> <div className="absolute left-1/2 -translate-x-1/2 mt-1 px-2 py-0.5 rounded bg-gray-900 text-white text-[10px] opacity-0 group-hover:opacity-100 transition"> {user.name} </div> </div> ))}

UI Features: - Scrollable: Overflow-x scroll for horizontal user listing - Hover Effect: Displays user name tooltip - Avatar Border: Matches the user's cursor color for identification

Cursor Lifecycle Summary

Stage	Description
1. Broadcast	User moves cursor → payload sent to channel
2. Receive	Other clients receive "cursor" broadcast → update local state
3. Render	Cursors are drawn in the UI (e.g., canvas overlay)
4. Timeout	If cursor not updated for 50s → removed (disconnected)

Channel Naming Convention

Each collaborative session is uniquely identified by both File ID and Version ID:

canvas-cursors-{fileId}-{versionId}

This ensures that: - Cursors are isolated between different files - Version-based collaboration (branches or revisions) are handled separately
