Communication Interface

Overview

The communication between the Edge Device (Raspberry Pi) and the Cloud Server (FastAPI) occurs over a persistent WebSocket (WSS) connection. This ensures low-latency, bidirectional control.

Protocol: WebSocket Secure (WSS)
Endpoint: wss://api.domain.com/ws/device/{device_id}
Frequency: Telemetry is pushed upstream every 1.0 second.

Upstream Payload (Telemetry)

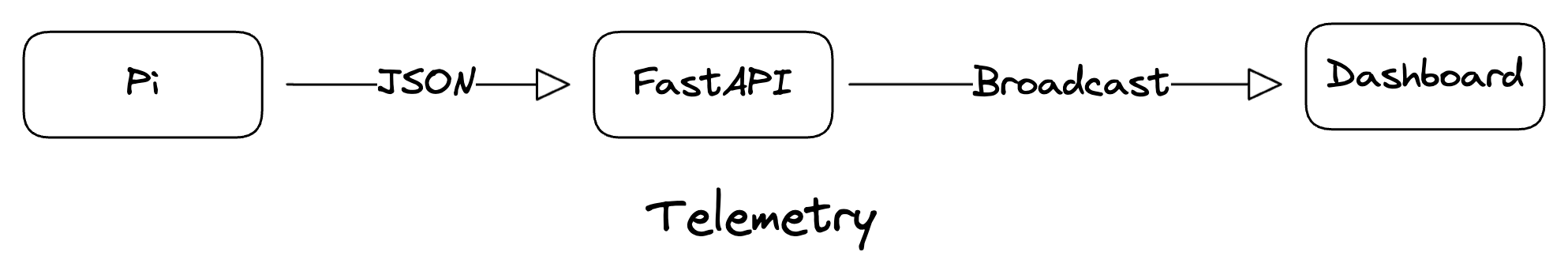

Telemetry Payload

Direction: Edge (Pi) → Cloud → Dashboard

Purpose: To visualize the live status of the system.

The Raspberry Pi sends this JSON packet every second.

{
  "device_id": "ems_001",
  "timestamp": "2026-01-31T12:00:01Z",
  "system_status": {
    "state": "CHARGING",       // Must match State Machine definitions
    "mode": "AUTO",            // AUTO or MANUAL
    "error_flags": [],         // List of active errors (e.g. ["OVERHEAT"])
    "wifi_strength": -45
  },
  "battery": {
    "voltage": 53.2,           // Volts
    "current": 10.5,           // Amps (+ = Charge, - = Discharge)
    "power": 558.6,            // Watts
    "soc": 85                  // State of Charge (%)
  },
  "grid": {
    "voltage": 230.1,
    "power": -200,             // Negative = Selling to Grid
    "frequency": 50.0
  }
}

Key Field Definitions:

system_status.state: The current active state from the FSM (e.g., IDLE, FULL, ERROR)
battery.current: Follows the polarity standart (Postive=Charging).

Downstream Payload (Control Commands)

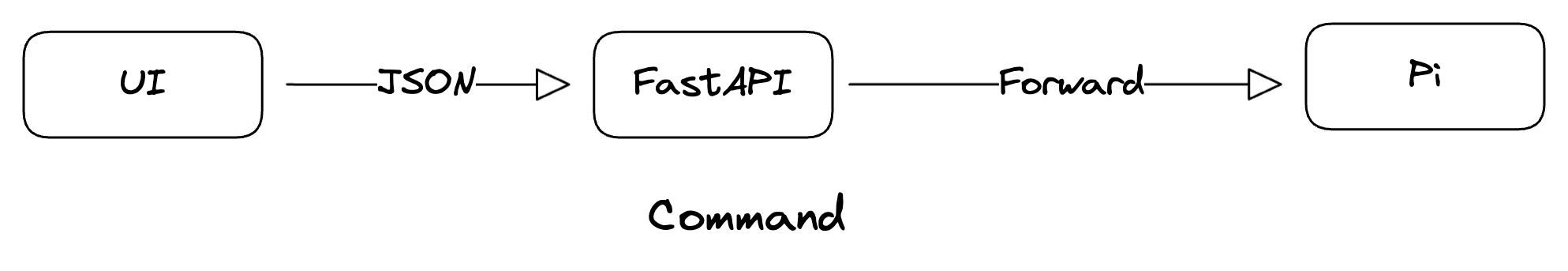

Downstream payload diagram

Direction: Dashboard → Cloud → Edge (Pi)

Purpose: To change the system's operating mode or reset errors.

The Raspberry Pi listerns for these JSON packets asynchronously.

A. Set Mode Command

Used to force the system into a specific strategy or manual override.

{
  "command_id": "cmd_8293",    // Unique ID for tracking
  "action": "SET_MODE",
  "payload": {
    "target_mode": "MANUAL_DISCHARGE",
    "target_power": 500        // Watts (Optional, specific to mode)
  }
}

B. Reset Error Command

Used to clear the ERROR state after a manual inspection.

{
  "command_id": "cmd_8294",
  "action": "RESET_ERROR",
  "payload": {}
}

Data storage

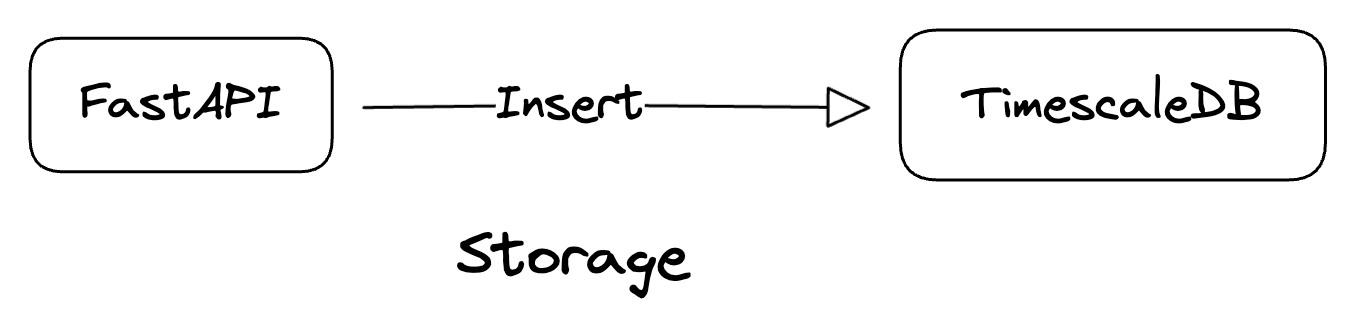

Data storage flow diagram

The FastAPI server receives the live telemetry stream and immediately inserts it into TimescaleDB for efficient, long-term historical storage.
